Technical

Specifications, installation guidance, and compliance data for architects and project teams.

Start here

Technical Data Sheet

Solid cast glass brick — full mechanical, thermal, and durability data for specification.

TDS Solid Glass Brick PDF, 1 page, IS. IN. Materials
Download PDF

Key specifications

Dimensions
200×100×50 mm
Standard size
Unit Weight
2.3 kg
Per brick
Compressive Strength
5.2 N/mm²
Avg, range 4.1–7.7 N/mm²
Thermal Conductivity
0.974 ±0.036 W/(m·K)
Water Absorption
0%
Non-porous
Fire Performance
Non-combustible
Inherent glass

Installation Guide

Solid glass bricks can be installed with transparent hybrid polymer adhesive for a seamless finish, or traditional mortar for classic masonry detailing. For large-scale or structural projects, mechanical reinforcement is recommended.

  1. Preparation

    Preparation

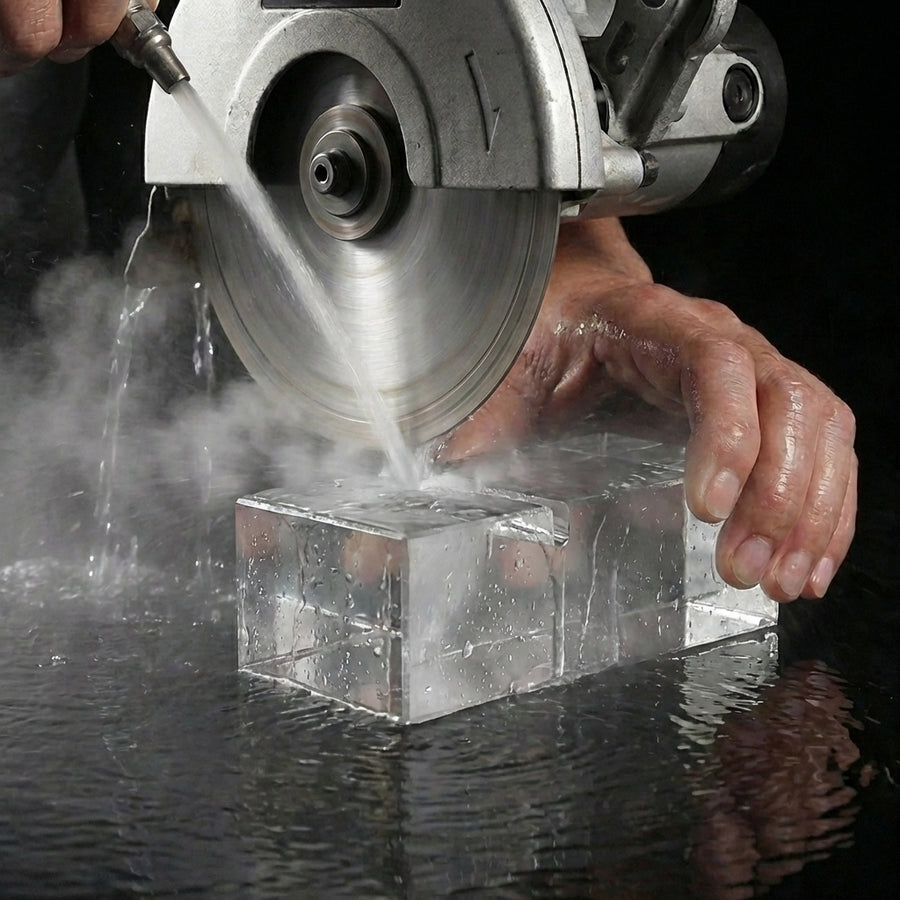

    Ensure the substrate is level, clean, and dry. Mark out the layout with reference lines before laying the first course. Bricks can be cut to size with a continuous-rim diamond blade on a wet saw with water cooling.

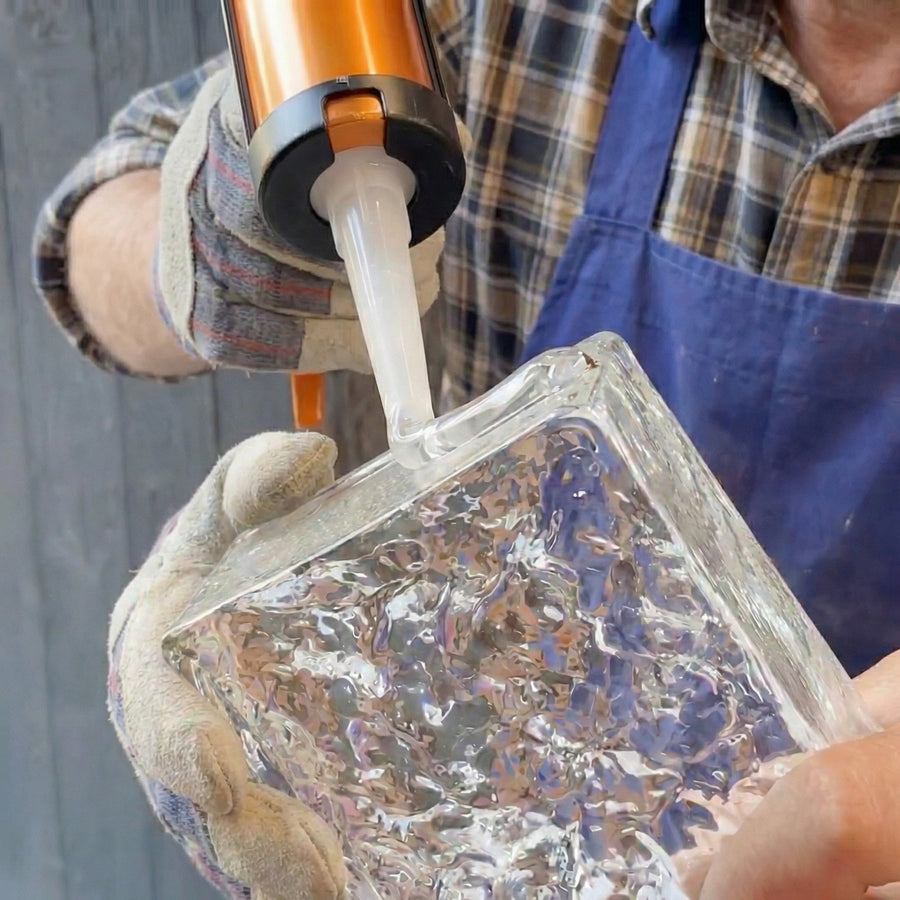

  2. Transparent Adhesive

    Transparent Adhesive

    Apply hybrid polymer adhesive (SMX technology, e.g. Soudal Fix All Crystal Clear) in dabs or continuous beads. Creates minimal joints for a refined, seamless glass finish.

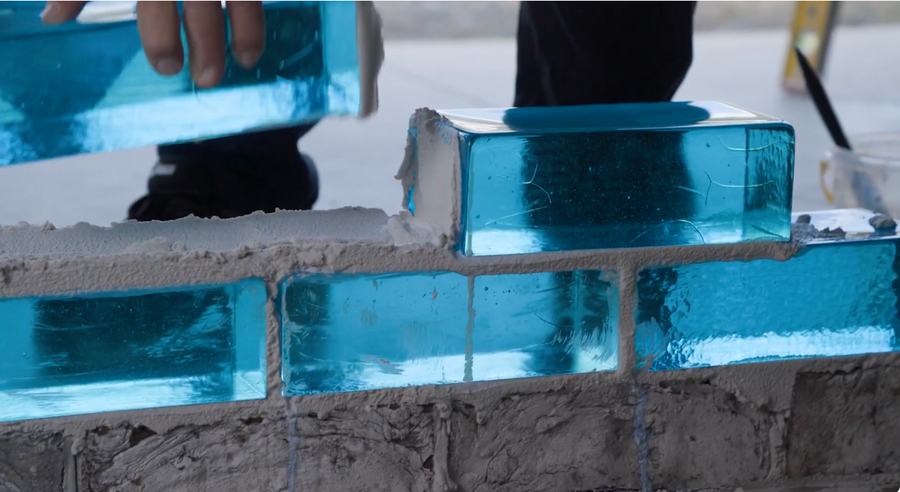

  3. Mortar Installation

    Mortar Installation

    Apply a polymer bonding primer to glass surfaces before mortaring. Use white glass-block mortar (polymer-modified Portland cement) with 10–12 mm joints. White mortar prevents discolouration through the transparent glass.

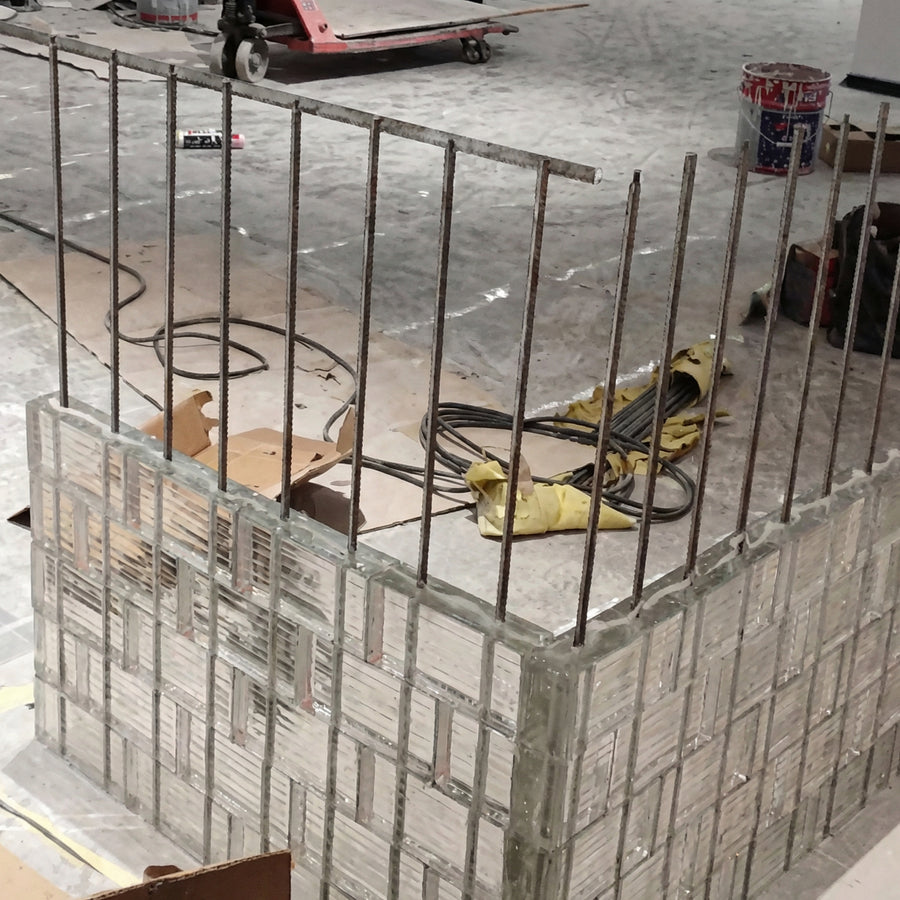

  4. Mechanical Fixing

    Mechanical Fixing

    For large walls or structural applications, add reinforcing rods through pre-drilled holes or use L-bracket restraints at the perimeter.

Joint width
10–12 mm standard for mortar. 2–5 mm for adhesive, maintained with cross spacers.
Adhesive type
Hybrid polymer adhesive (SMX technology) for glass and heavy loads — crystal clear, flexible, non-yellowing. Not standard silicone. Not tile adhesive.
Reinforcement
Requirements depend on how many sides are supported. More restrained edges = larger panels possible.
● Freestanding (base only): reinforce above 1.5 m height.
● Two-sided: above 1.8 m.
● Three-sided: above 2.5 m.
● Fully framed (4 sides): larger spans possible — consult engineer above 3 m.
For exterior or load-bearing applications, always consult a structural engineer.
Brick orientation
Vertical orientation (5 cm thickness) for lighter partitions. Horizontal orientation (10 cm thickness) increases wall stability — allows taller panels before reinforcement is needed.

Pattern Library

10 tested bond configurations — 5 vertical + 5 horizontal. Each pattern shows brick count per m² for accurate ordering. All based on 200×100×50 mm bricks with 2-5 mm joints.

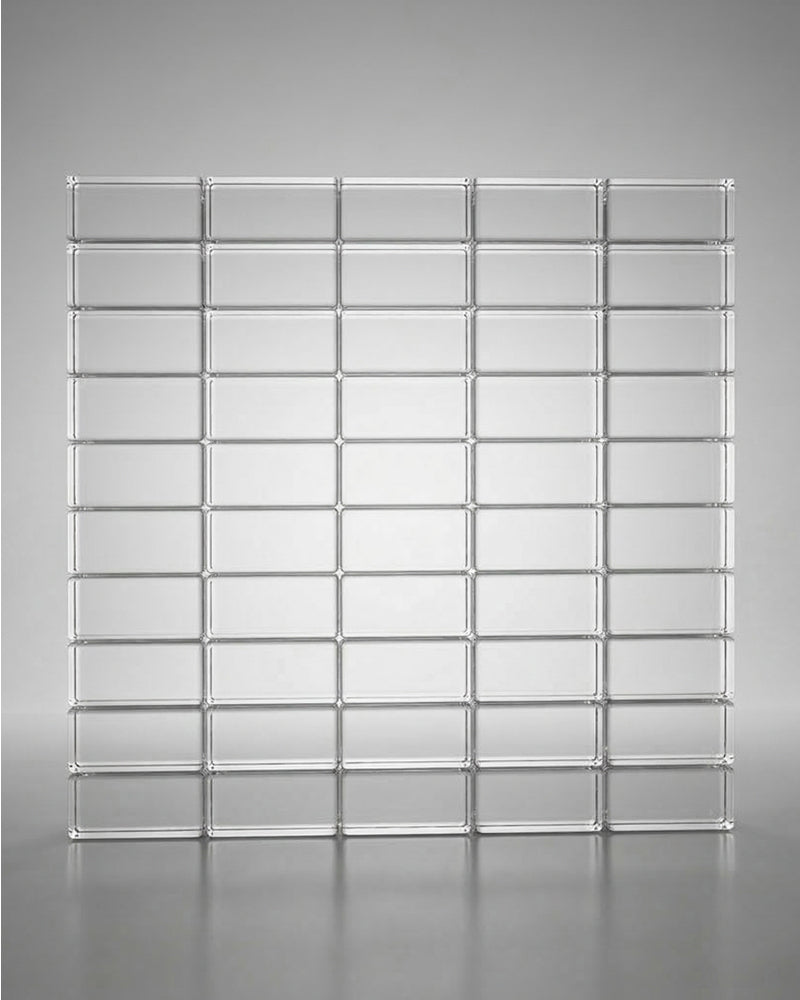

Stack Bond

Stack Bond

Aligned grid 50 bricks/m2

▦ 5 cm wall thickness

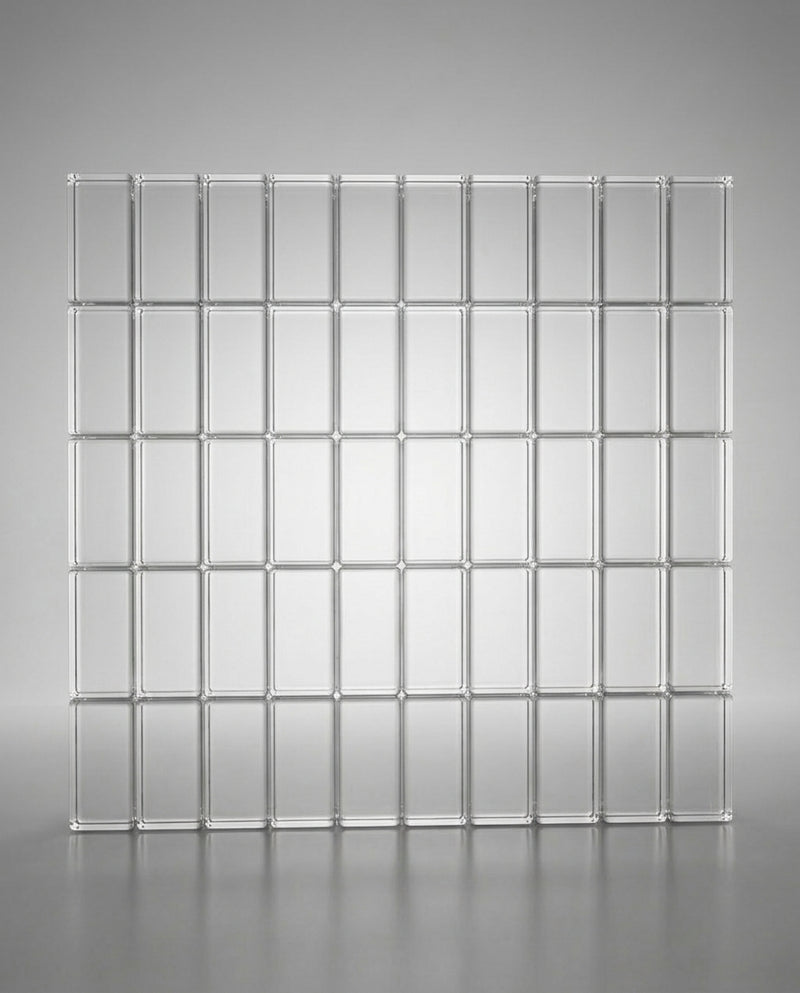

Portrait Stack Bond

Portrait Stack Bond

Aligned grid 50 bricks/m2

▦ 5 cm wall thickness

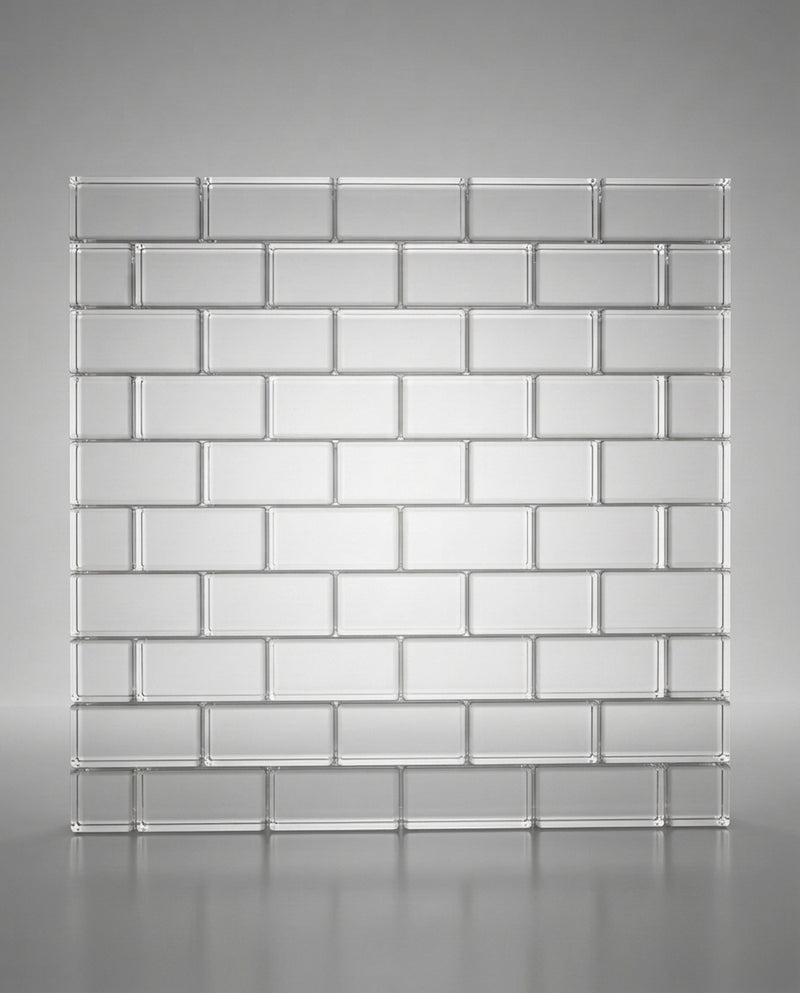

Running Bond

Running Bond

Horizontal, ½ offset 50 bricks/m2

▦ 5 cm wall thickness

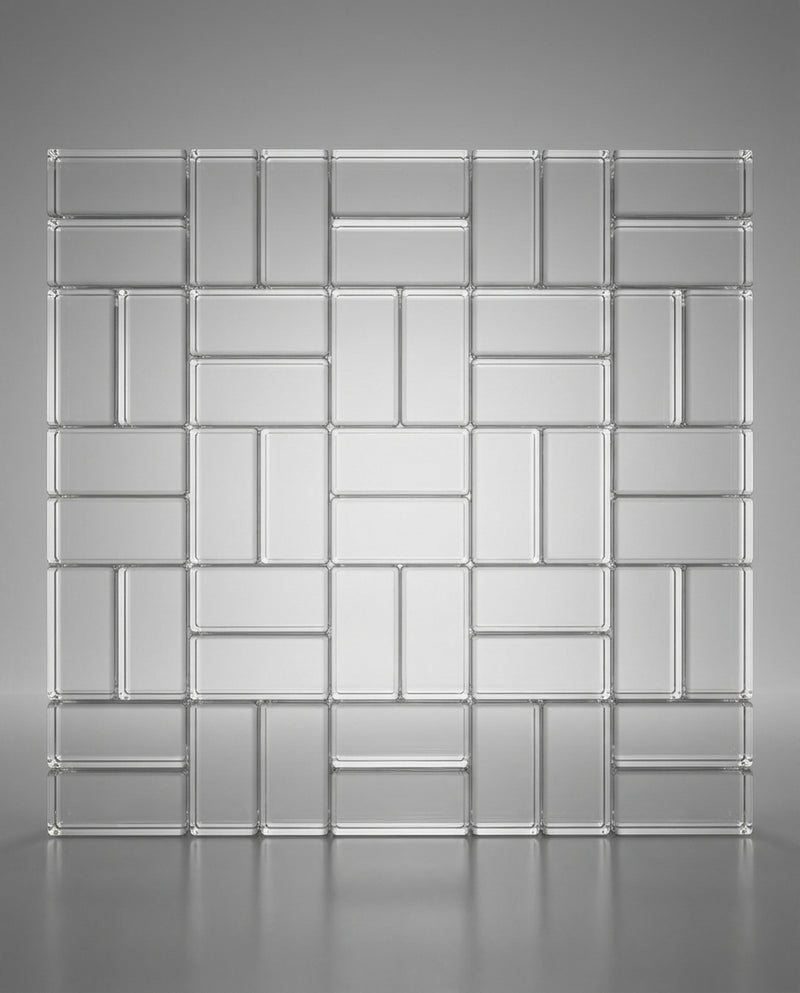

Basket Weave

Basket Weave

Alternating H + V 50 bricks/m2

▦ 5 cm wall thickness

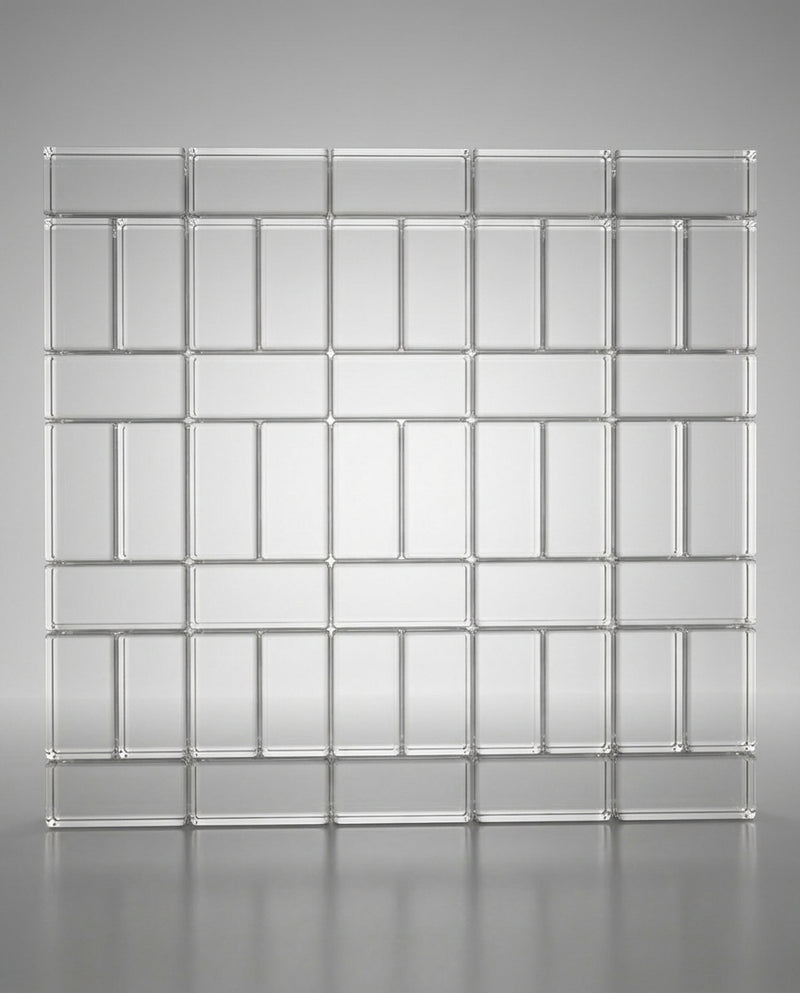

Herringbone

Herringbone

Alternating H + V 50 bricks/m2

▦ 5 cm wall thickness

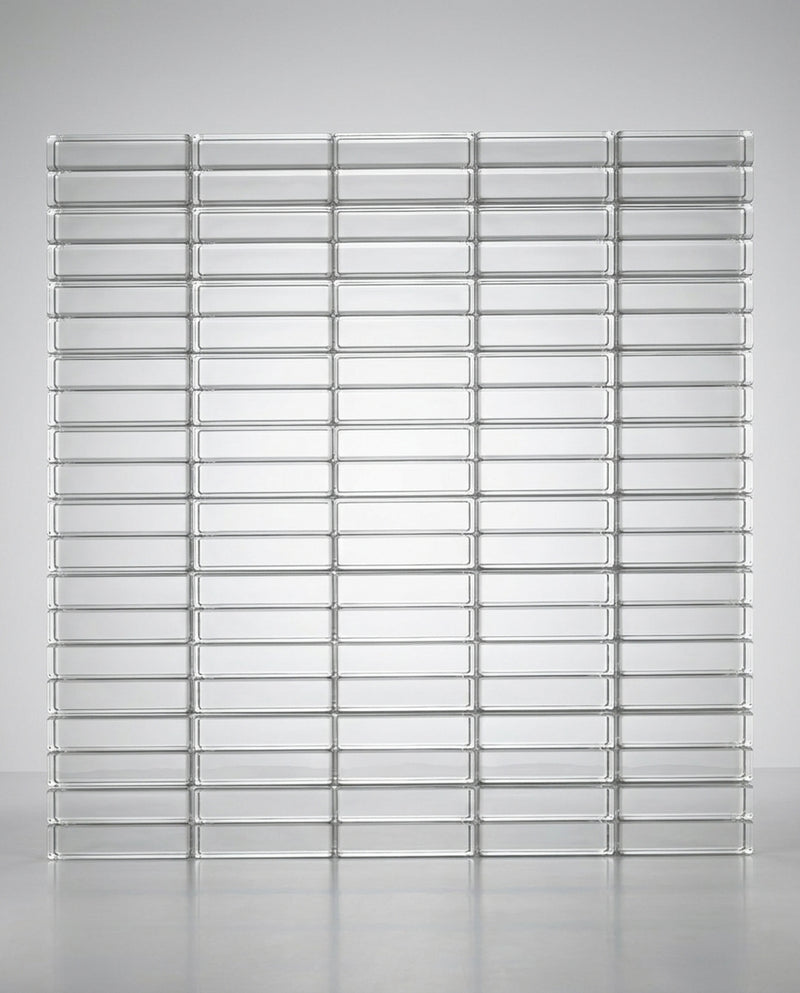

Stack Bond (horizontal)

Stack Bond (horizontal)

Aligned grid 100 bricks/m2

▦ 10 cm wall thickness

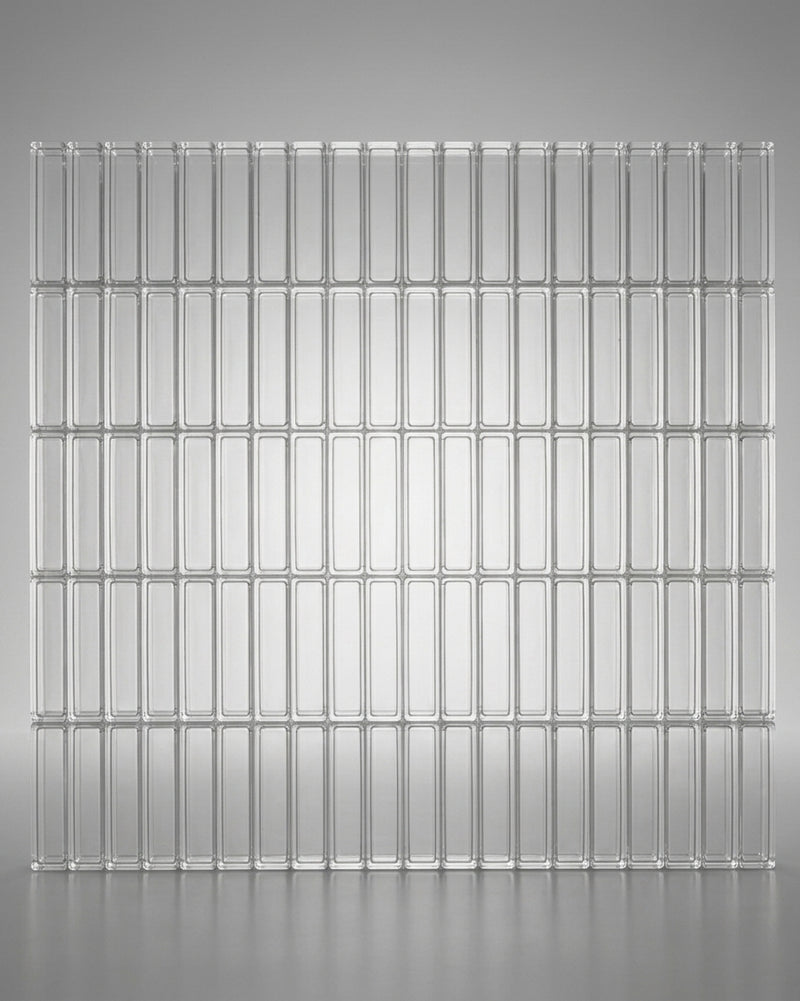

Portrait Stack Bond (horizontal)

Portrait Stack Bond (horizontal)

Aligned grid 100 bricks/m2

▦ 10 cm wall thickness

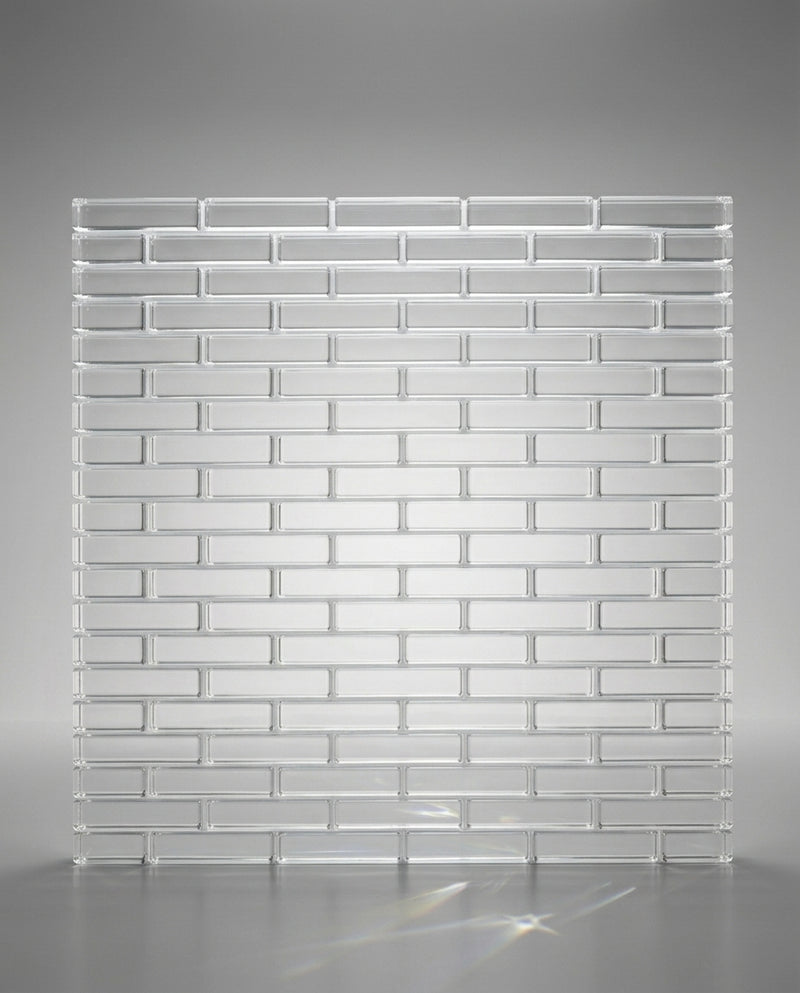

Running Bond (horizontal)

Running Bond (horizontal)

½ offset 100 bricks/m2

▦ 10 cm wall thickness

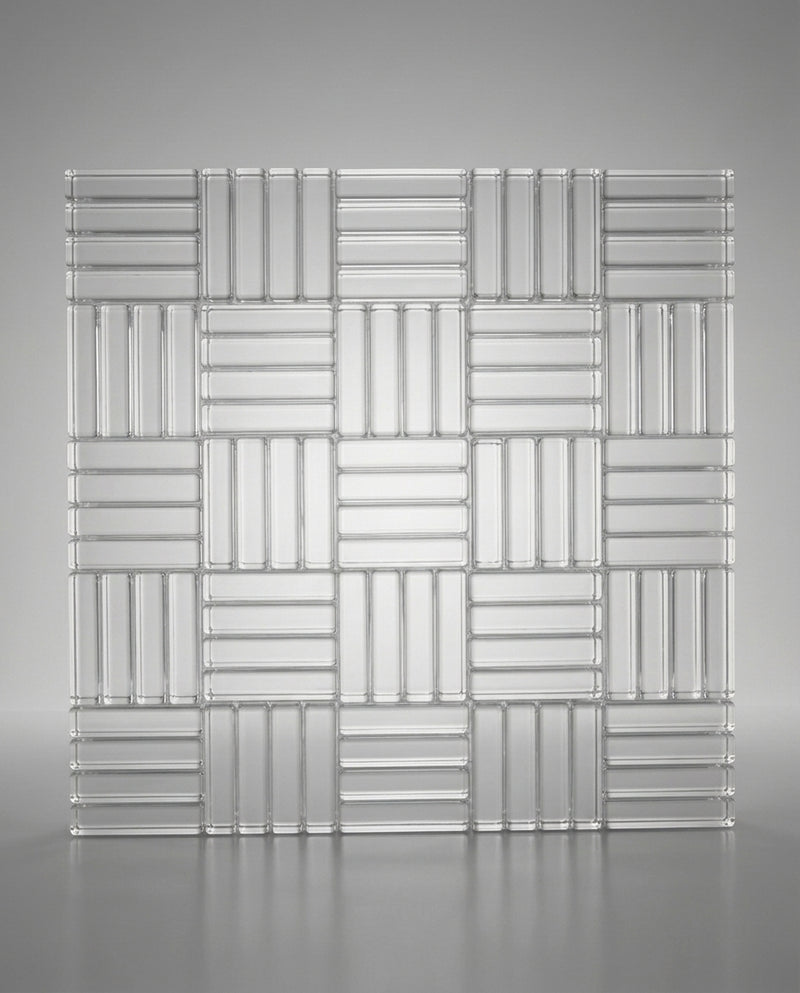

Basket Weave (horizontal)

Basket Weave (horizontal)

Alternating H + V 100 bricks/m2

▦ 10 cm wall thickness

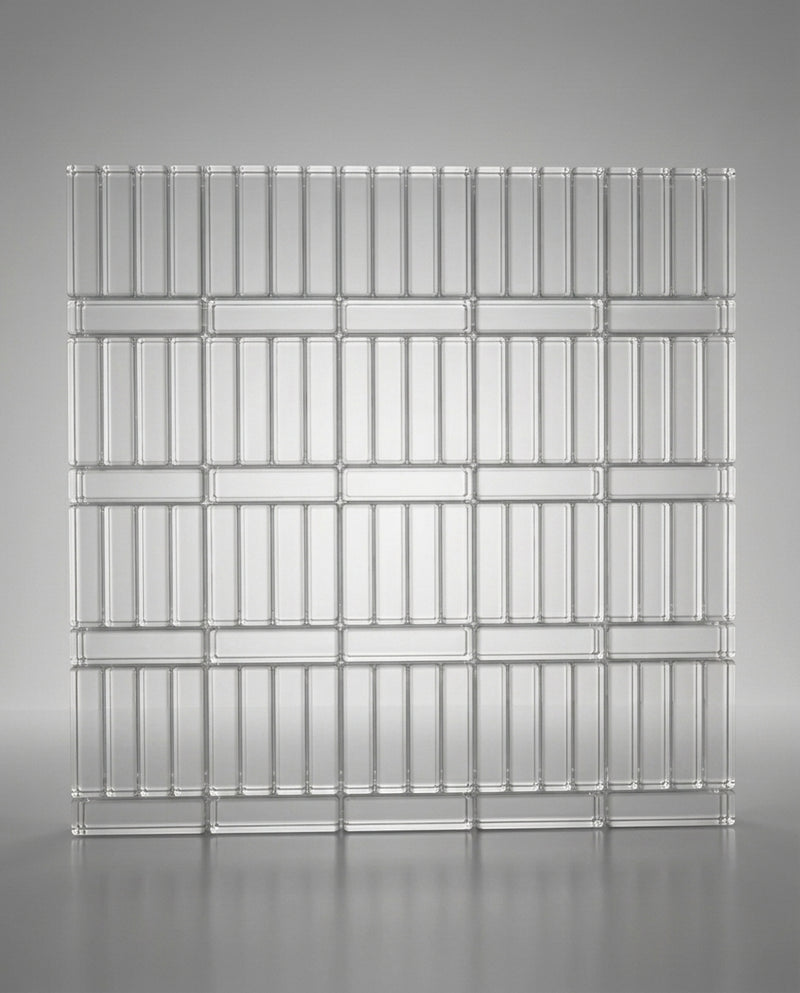

Herringbone (horizontal)

Herringbone (horizontal)

Alternating H + V 100 bricks/m2

▦ 10 cm wall thickness

Performance & Compliance

All data from IS. IN. Materials testing. Values apply to the standard 200×100×50 mm solid glass brick.

  • IS. IN. Materials Tested
  • Non-combustible
  • 0% Water Absorption
Property Value Standard / Note
Dimensions 200×100×50 mm Standard size
Unit Weight 2.3 kg Per brick
Compressive Strength 5.2 N/mm² avg Range 4.1–7.7 N/mm²
Impact Resistance Pass 5/5 samples unbroken
Hardness 3 Mohs
Vickers Hardness 520 Hv 0.5
Thermal Conductivity 0.974 ±0.036 W/(m·K)
Thermal Shock Resistance Pass No cracks in 5 samples
Fire Performance Non-combustible Inherent glass property
Water Absorption 0% Completely non-porous
Initial Rate of Absorption 0 kg/(m²·min) Based on 0% porosity
Efflorescence & Lime Pitting Nil
Appearance Quality Certified Free of bubbles, scratches, and surface contamination
Internal Purity Certified No inclusions, foreign bodies, or residual impurities
Structural Integrity Certified No penetrating cracks or gaps

Testing conducted following JC/T 1007-2006 methodology, adapted for solid glass brick. Full test certificates available on request. Contact us for project-specific compliance documentation.
